Products Page 3

canvas

pvc & others

components

canvas types

Canvas has become a generic term for an industrial fabric and covers many product areas.

Canvas can be in a raw form, untreated and uncoated and is call LOOMSTATE CANVAS. It can be used in bags, as art canvas, market umbrella covers, cushion cover to name just a few.

We then have PROOF CANVAS. This is the treated and coated canvas that is waterproof, stain and mildew resistant. It comes in different “weights” and is used in swags, tents, bags, trailer covers, truck canopies, ground sheets, tool wraps and dog beds.

Associated to Proof Canvas is CAMPING CANVAS which is used in caravan annexes, tents, swags etc. the large portion of this camping canvas range is striped on one side but there are also plain colours available.

HORSE RUG CANVAS is a more specialised area and includes both LOOMSTATE CANVAS for summer rugs and PROOF CANVAS for winter and wet conditions. We generally only sell this class of canvas by the roll.

Today’s canvas is generally made from a polyester/cotton mix to keep the weight down, while maintaining optimum strength and durability.

In the LOOMSTATE RANGE we have 100% cotton canvas available, but not all weights are available as cut to length.

LOOMSTATE

ARTIST

PROOF

CAMPING

HORSE RUG

LOOMSTATE CANVAS

DR6 100% Cotton 189cm wide 195g/sqm

DR8 100% Cotton 189cm wide 270g/sqm

AC10 100% Cotton 190cm wide 340g/sqm

ART12 100% Cotton 190cm wide 390g/sqm

CD15 100% Cotton 198cm wide 500g/sqm

DX12 52/48 Poly/Cot 210cm wide 395g/sqm

LOOMSTATE canvas, particularly 100% cotton, will not be pure white, by nature of the yarn used, it is more an off white or cream.

Available by special order in full rolls is scoured or bleached canvas, minimum quantities will apply.

ARTIST CANVAS

Double-Primed Artist Canvas is coated with an acrylic base formulation to ensure maximum protection against any traces of harmful impurities that may develop over the years as a result of ageing.

To achieve this, a neutralizing agent is included to absorb any traces of acidic compounds.

The whiteness of the canvas is enhanced by the use of Titanium Dioxide pigment of the highest purity.

The material analysis of this pigment serves as a guarantee that it is free of any by-products that could affect the long-term durability of the cotton base.

DR6 100% Cotton 186cm wide 300g/sqm

DR8 100% Cotton 186cm wide 350g/sqm

AC10 100% Cotton 188cm wide 425g/sqm

ART12 100% Cotton 188cm wide 480g/sqm

CD15 100% Cotton 192cm wide 600g/sqm

DX12 52/48 Poly/Cot 204cm wide 495g/sqm

PROOF CANVAS

COOLABAH: Is a superfine polyester / cotton “Japara” quality tenting fabric. It has been especially designed and developed for the continental and family-style frame Tent, for both roofs and walls. Coolabah is also recommended as a high quality walling for campervans where a large amount of fabric can be folded into a tight compact area.

Colours: Antelope, Beige, Brunswick, Blue, Grey, Light Grey, Light Sand, Olive

BILLABONG: Is the highest quality, light-medium weight, blended polyester / cotton canvas tent fabric available. Billabong is a very tightly constructed fabric as it is woven from fine yarn counts. Billabong is designed specifically for higher quality family frame tents and campervan roofing and walling.

Colours: Antelope, Beige, Brunswick, Blue, Grey, Light Grey, Light Sand, Olive, Jade, Maroon, Khaki, Navy

DX12: Is a medium weight, general-purpose blended polyester / cotton canvas which is especially suitable for a wide range of applications. These include: swags, marquee and tepee roofs and walls, temporary shelters, under tarpaulins, box-trailer covers and heavy-duty campervan roofs and walls. DX12 is also perfect for annexe roofs in semi-permanent situations, as well as high quality family marquee roofs and walls.

Colours: Antelope, Beige, Black, Blue, Brunswick Green, Green, Dark Green, Grey, Lt. Grey, Maroon, Khaki, Navy, Lt. Sand, Olive, Olive F/R, Aus Cam D.P.

BULLDUCK T.T.: Has a Tearstop construction with Terylene/Cotton corespun threads woven throughout the fabric. These threads are woven in both the warp and weft directions to reinforce the tear and tensile qualities of this very strong canvas. The fabric is designed specifically for very large semi-trailer truck tarpaulins where extra strength is required.

Colours: Antelope, Blue, Green, Grey, Olive, Red

CS12

CS12 T/S is 100% Corespun. This ensures that the fabric is suitable for any situation where great strength is required. The fabric is designed specifically for larger type tarpaulins.

Colours: Antelope, Black, Green, Blue, Grey, Olive, Red

CANNONBALL: Is a medium duty, general purpose budget priced Cotton Canvas recommended for static situations including, Swags, Marquees, Teepee roofs and walls, Temporary Shelters, secondary Under-tarps, Flat Sheet Box-Trailer Covers. Cannonball is not recommended for shaped or fitted covers unless careful consideration is given to the shrinkage factor associated with a 100% Cotton Duck.

Colours: Antelope, AusCam D.P., Dark Green, Olive

CD15: Is a 100% Cotton Canvas which is suitable for similar applications to Cannonball. These include: Swags, Marquees, Tent Roofs and Walls, Temporary Shelters, Under –tarps, Box–Trailer Covers and Non-Permanent Annexes and Walls. CD15 is designed to provide manufacturers with an alternative to Cannonball, where extra weight and strength is required.

CAMPING CANVAS

Finished Weight: 370g/sqm

Finished Width: 222cm

Composition: 100% Polyester

Roll Size: 50m (approx)

Tear Resistance:

Wing Rip - (as 2001.2.10) Warp - 72n

Weft - 66n

Breaking Force:

Strip Tensile - (as 2001.2.3) Warp - 2810n/50mm

Weft - 2023n/50mm

Shrinkage: Warp - 0%

Weft - 2%

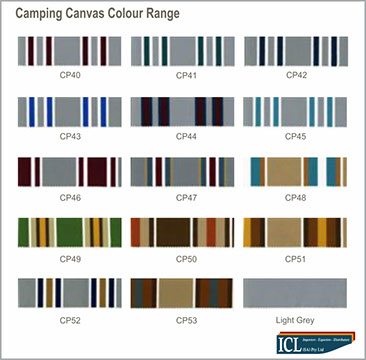

View colour range

HORSE RUG CANVAS

POLYRUG T/S

The Hydrostatic Head and Cone Test would indicate that the fabric is perfectly waterproof. However, being a 100% polyester fabric, we suggest that this fabric is only to be used as a shower proof summer sheet for horse rugs. The base fabric is woven with either blue or white (self colour) checks.

RAWHIDE

Rawhide is a strong, tough, general-purpose blended polyester / cotton canvas incorporating an attractive blue-dyed yarn overchecked to enhance the Tearstop construction. The material is specifically designed for horse rugs.

TROJAN 18

Trojan 18 is simply the heaviest and toughest of all wide width horse rug fabrics. Trojan 18 is a tearstop construction blended polyester / cotton woven with black dyed warp and weft yarns.
